Description

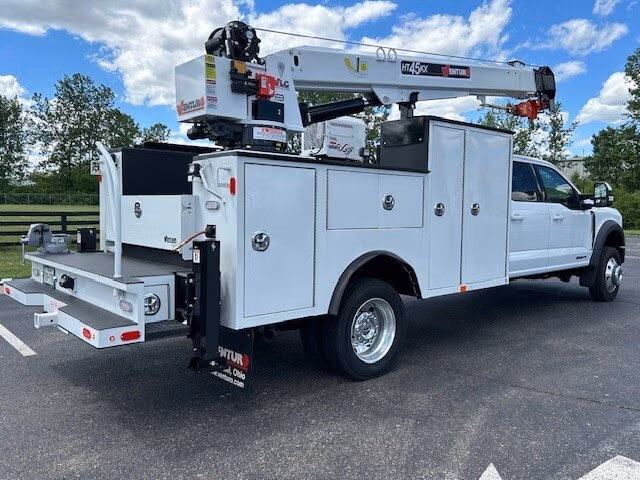

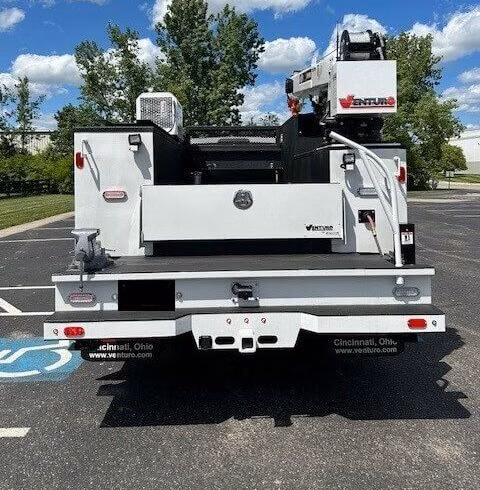

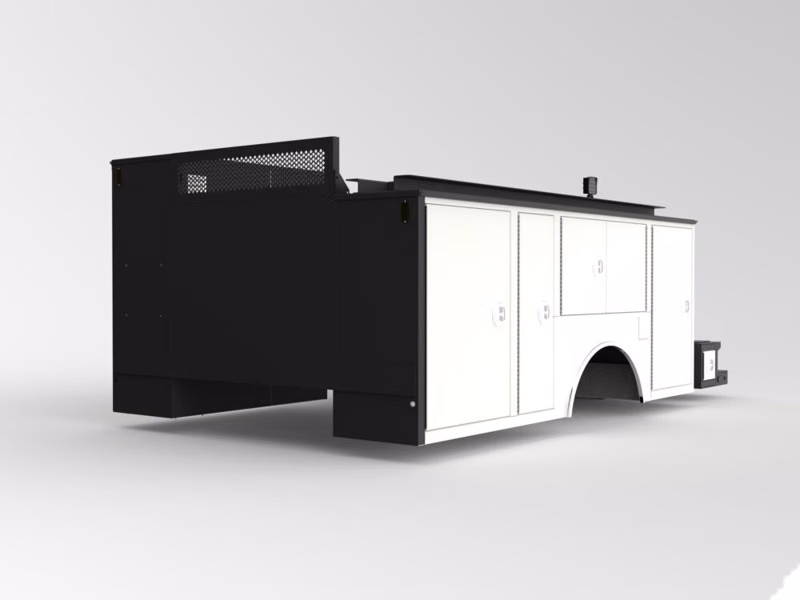

Venco Venturo Pro 9 Series Crane Body.
Specifications
Manufacturer
Venco Venturo
Model
Pro 9 Series Crane Body
Year
2025
Category
Truck Bodies
Subcategory
Crane Service Bodies
Compartment Height Streetside
50"
Compartment Height Curbside
40"/60"
Compartment Depth
22"
Cargo Space Width
50"
Streetside-1 Compartment
35"
Curbside-1 Compartment
33"
Streetside-2/Curbside-2 Compartment
SS - 16", CS - 22"
Streetside-3/Curbside-3 Compartment
SS - 48", CS - 48"
Streetside-4/Curbside-4 Compartment
SS - 27", CS - 31"
Cab-Axle
84"
Bed Length
11 ft
Tire Size
19.5"
Overall Size
134″ Long x 94″ High x 62″ Wide
Curbside Length
3403.60 mm (134.00 in)
Streetside Length
3403.60 mm (134.00 in)
Height
2387.60 mm (94.00 in)
Width
2006.60 mm (79.00 in)
Crane Capacity
Up to 8,000 lbs
FT LBS Rating
50,000 ft lbs
Crosstube
25100
Min GVWR
Class 5 - 16,000 lbs
Main Body
14 gauge galvanneal
Vertical Compartment Bottoms
14 gauge
Compartment Tops
12 gauge HR treadplate
Door Panels (Outer and Inner)
16 gauge
Wheel Panels
14 gauge galvanneal
Front Bulkhead
14 gauge galvanneal
Adjustable Shelving
14 gauge galvanized
Bed Wall Liners
12 gauge HR treadplate
Floor
12 gauge hot rolled treadplate
Frame
10 inch high x formed 10ga Grade 50 channel
Underbelly Plate
12ga Grade 50
