Description
36.33 ft Overcenter Insulated Material Handling
Specifications
Manufacturer
Versalift
Model
VOE-36-MHI (EXPORT)
Year
2025
Category
Bucket / Boom Trucks
Subcategory
Overcenter

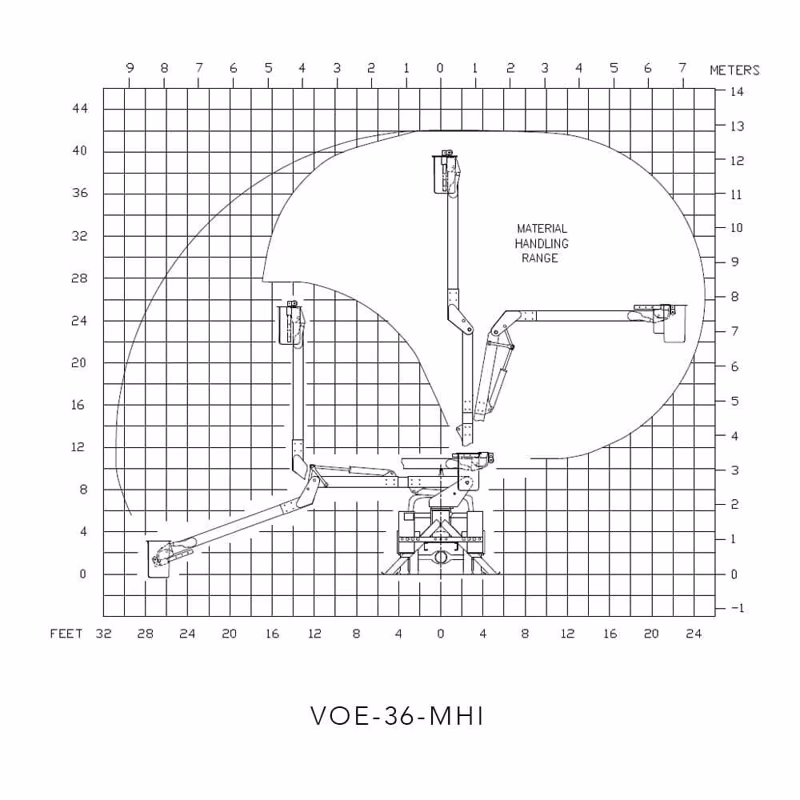

Working Height
42.25 ft (12.8 m)
Height to Bottom of Platform
36.33 ft (10.97 m)
Horizontal Reach Overcenter
29.17 ft (8.84 m)
Horizontal Reach Non-overcenter
23.33 ft (7.01 m)
Stowed Travel Height
11.75 ft (3.35 m)
Platform Capacity
400 lbs (181.44 kg)
Insulated or Non-insulated
Insulated
Hydraulic Controls
Full Hydraulic
Operating Pressure
2500 psi (175.77 kg/cm²)
Flow Rate
8 gpm (30.28 lpm)
Filtration
10 micron return | 100 mesh suction
System Type
Open Center
Power Source
PTO Pump
Upper Boom Articulation
200°
Lower Boom Articulation
110° horizontal to 20° past vertical
Upper Boom Insulation Gap
76 in (1.93 m)
Lower Boom Insulation Gap
12 in (0.3 m)
Lower Boom Lift Eye Capacity
3500 lbs (1587.57 kg)
Boom Rotation
Continuous
Jib & Winch Capacity
1500 lbs (680.39 kg)
Industries Served
Electric Power Distribution, Electric Utilities
Type
Overcenter
Height Range
29ft - 45ft
Model Series
Vo
