Description
Bucket Truck 63 ft Insulated Articulated/Telescopic
Specifications
Manufacturer
Versalift
Model
VST-6300-I
Year
2025
Category
Bucket / Boom Trucks
Subcategory
Articulated Telescopic
Height Range
45ft - 65ft
Working Height
68.17 ft (20.73 m)
Height to Bottom of Platform
63.17 ft (19.2 m)

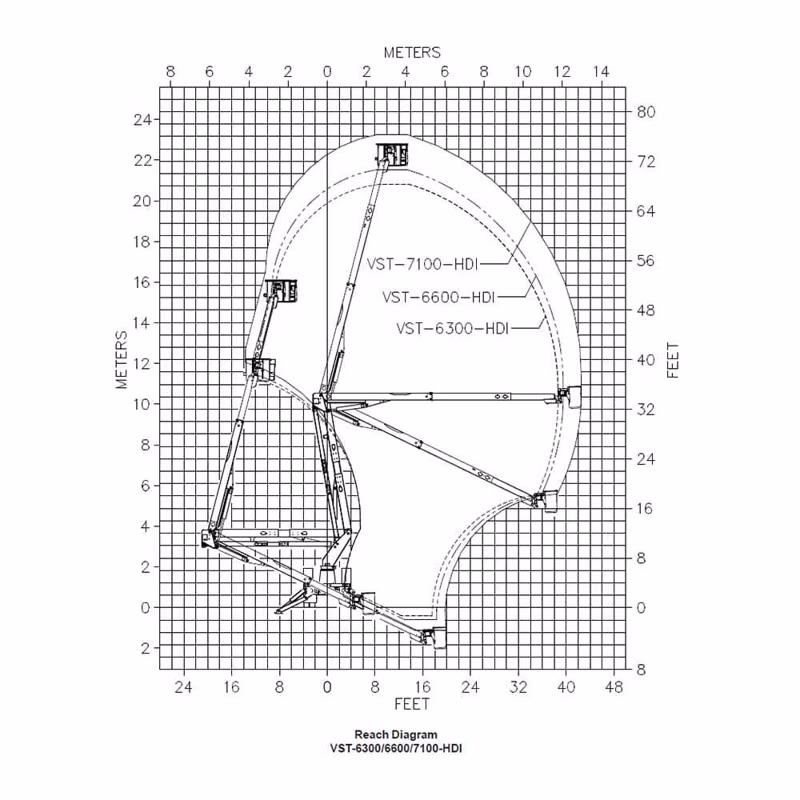

Horizontal Reach
38.67 ft (11.58 m)
Stowed Travel Height
12.83 ft (3.66 m)
Lower Boom Articulation
0° to 84°
Inner/Outer Boom Articulation
-25° to +75°
Inner Boom Extension
123.5 in (3.12 m)
Boom Rotation
Continuous
Cab to Axle (minimum)
120 in (3.05 m)
Upper Boom Insulation Gap
71 in (71 m)
Lower Boom Insulation Gap
24 in (24 m)
Industries Served
Electric Power Distribution, Electric Utilities
Type
Articulated Telescopic
Model Series
VST
Platform Capacity
800 lbs (362.87 kg)
Insulated or Non-insulated
Insulated

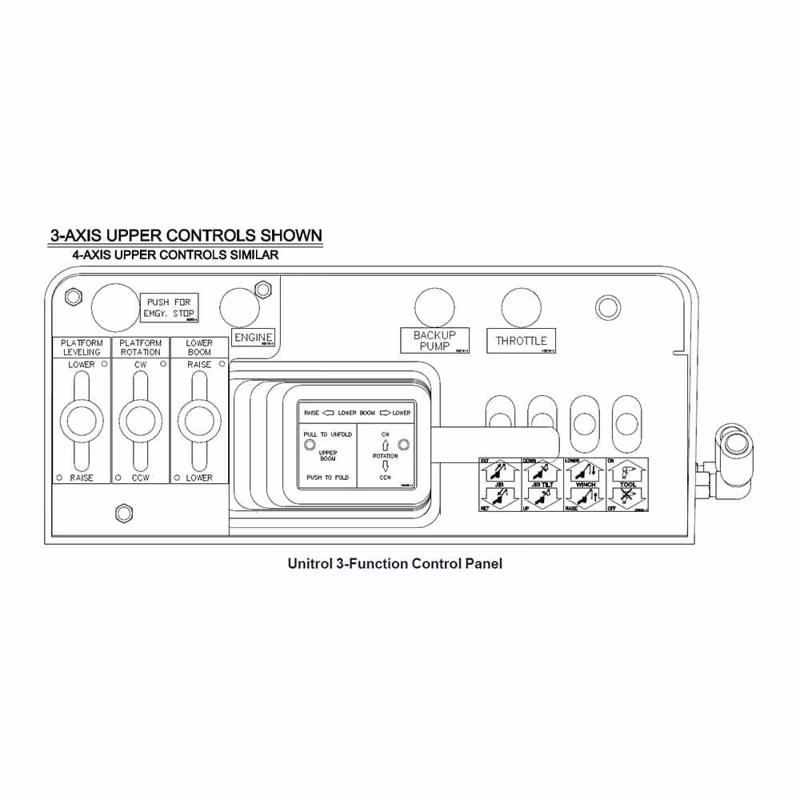

Hydraulic Controls
Full Hydraulic
Operating Pressure
3000 psi (210.92 kg/cm²)
Flow Rate
10 gpm (37.85 lpm)
Filtration
10 micron return | 100 mesh suction
System Type
Open Center
Power Source
PTO Pump
GVWR
33000 lbs (14968.47 kg)
Lower Boom Lift Eye Capacity
1500 lbs (680.39 kg)
