Description

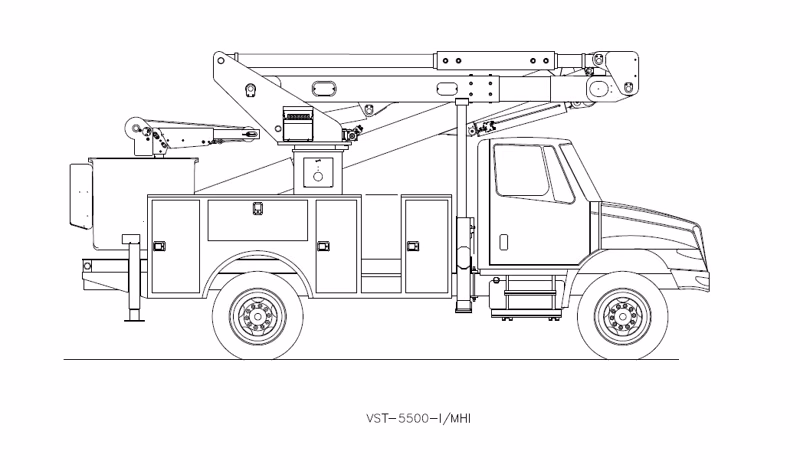

Bucket Truck 55 ft Insulated Articulated/Telescopic Material Handler
Specifications
Manufacturer
Versalift
Model
VST-5500-MHI
Year
2025
Category
Bucket / Boom Trucks
Subcategory
Articulated Telescopic

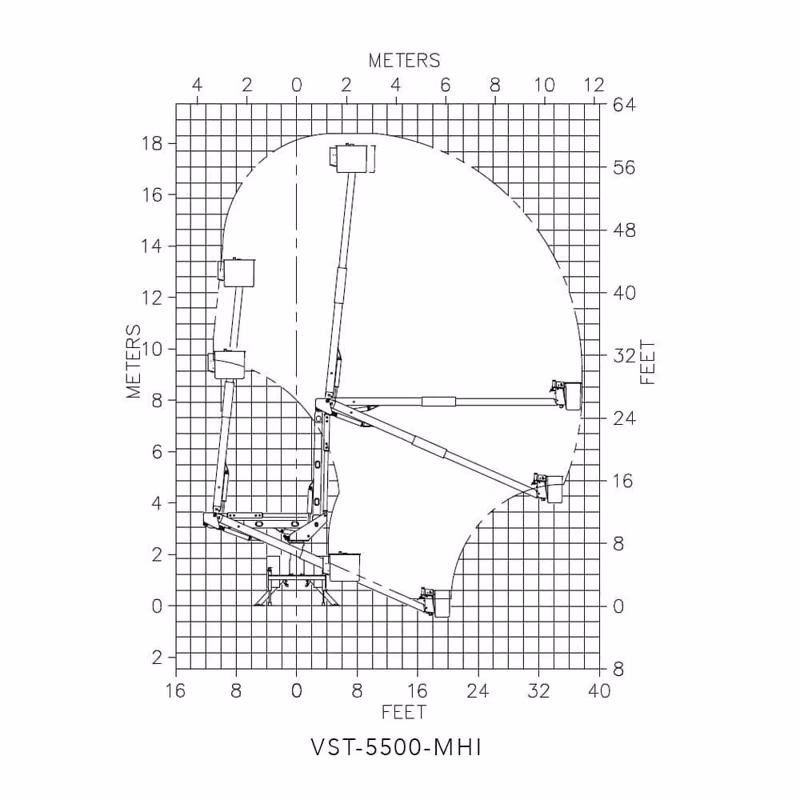

Height Range
45ft - 65ft
Working Height
60.25 ft (18.29 m)
Height to Bottom of Platform
55.25 ft (16.76 m)
Horizontal Reach
37.92 ft (11.28 m)
Stowed Travel Height
11.92 ft (3.35 m)
Lower Boom Articulation
0° to +92°
Inner/Outer Boom Articulation
-25° to +85°
Inner Boom Extension
141 in (3.58 m)
Boom Rotation
Continuous
Cab to Axle (minimum)
102 in (2.59 m)
Insulation Gap Fully Retracted
51 in (1.3 m)
Insulation Gap Fully Extended
185 in (4.7 m)
Lower Boom Insulation Gap
24 in (0.61 m)
Industries Served
Electric Power Distribution, Electric Utilities
Type
Articulated Telescopic
Model Series
VST
Platform Capacity
650 lbs (294.83 kg)
Insulated or Non-insulated
Insulated
Operating Pressure
2250 psi (158.19 kg/cm²)
Flow Rate
7.5 gpm (26.5 lpm)
Filtration
10 micron return | 100 mesh suction
System Type
Open Center
Power Source
PTO Pump
GVWR
31000 lbs (14061.29 kg)
Lower Boom Lift Eye Capacity
1000 lbs (453.59 kg)

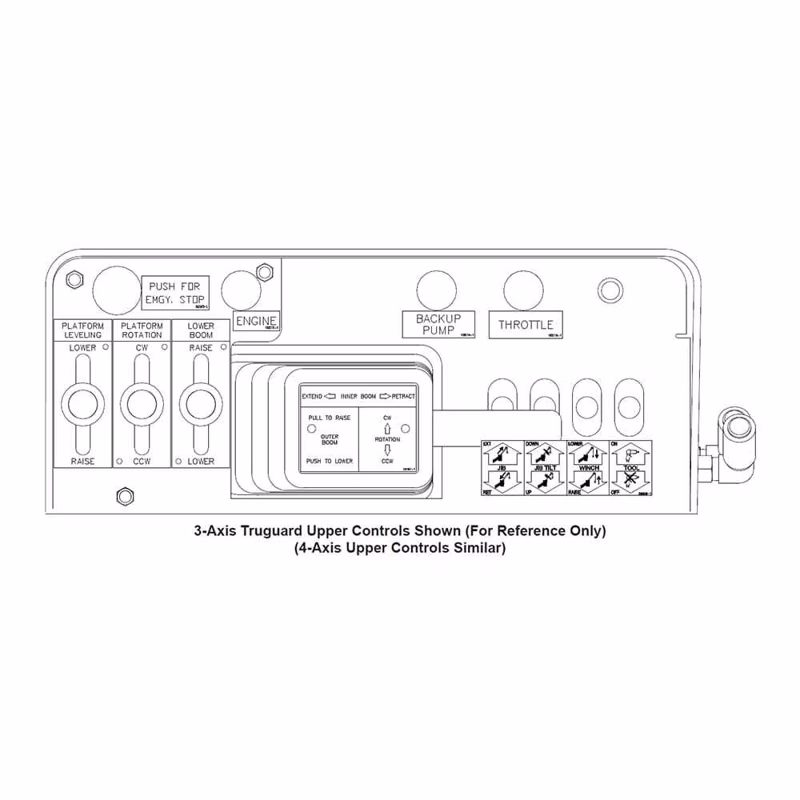

Hydraulic Controls
Full Hydraulic
Jib & Winch Capacity
1000 lbs (453.59 kg)
